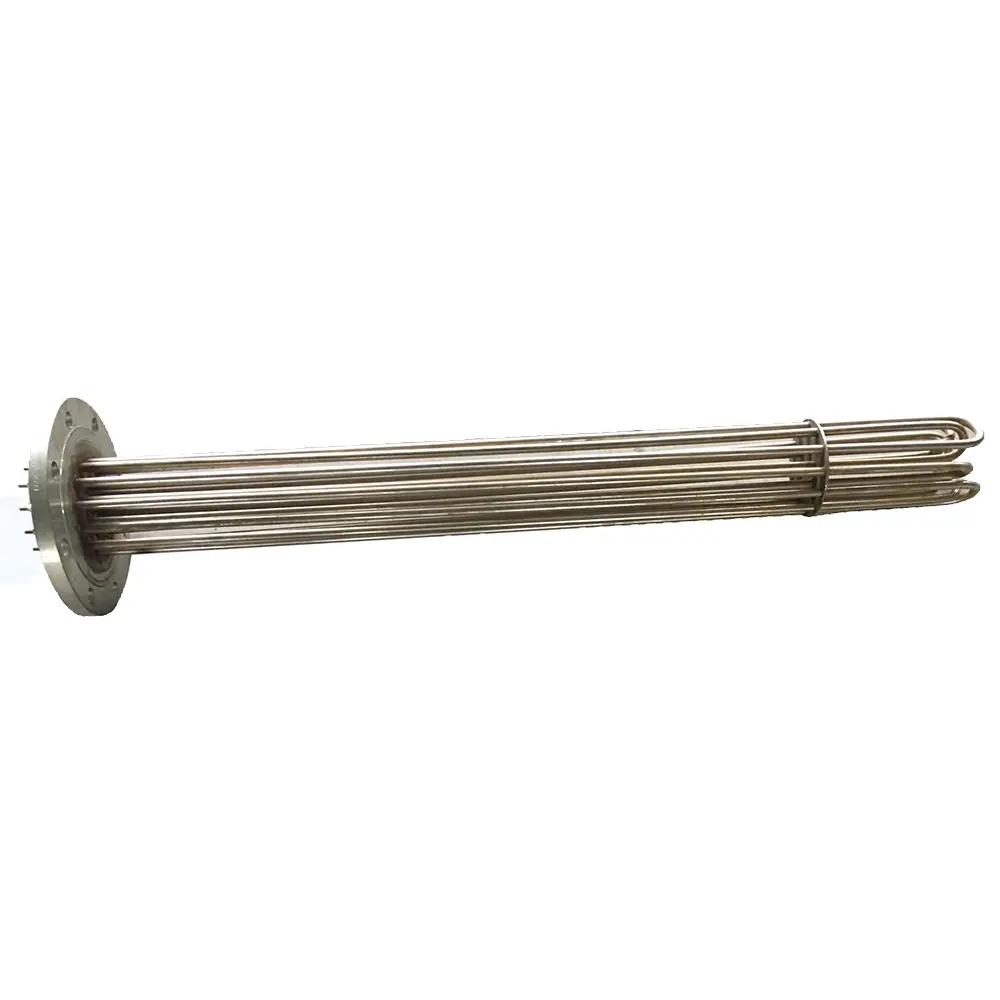

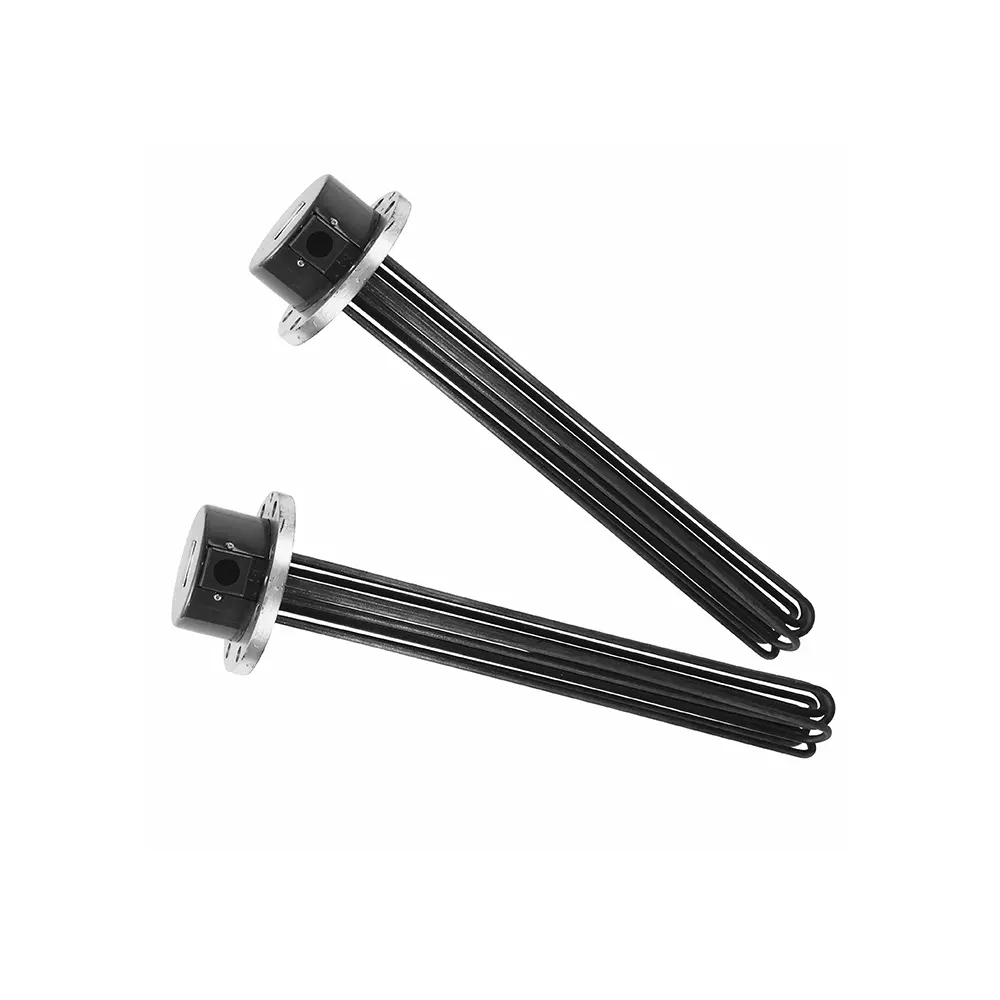

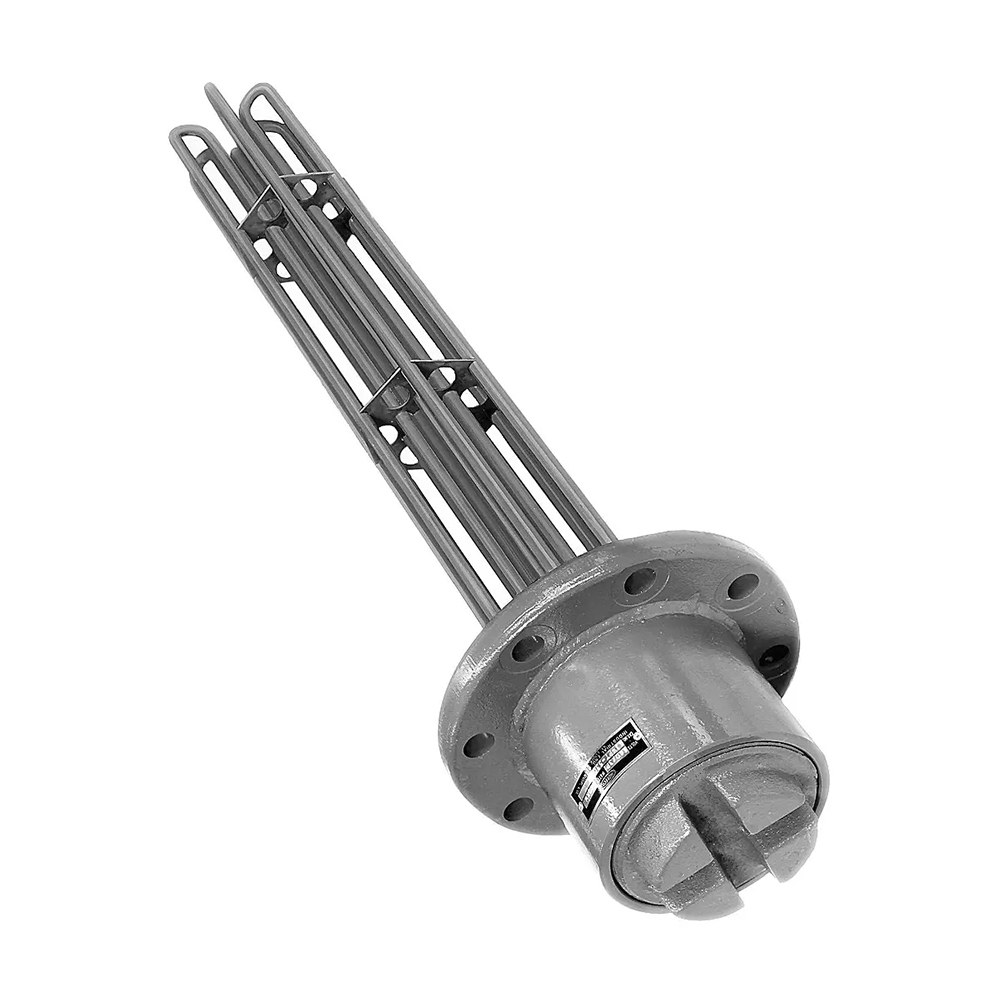

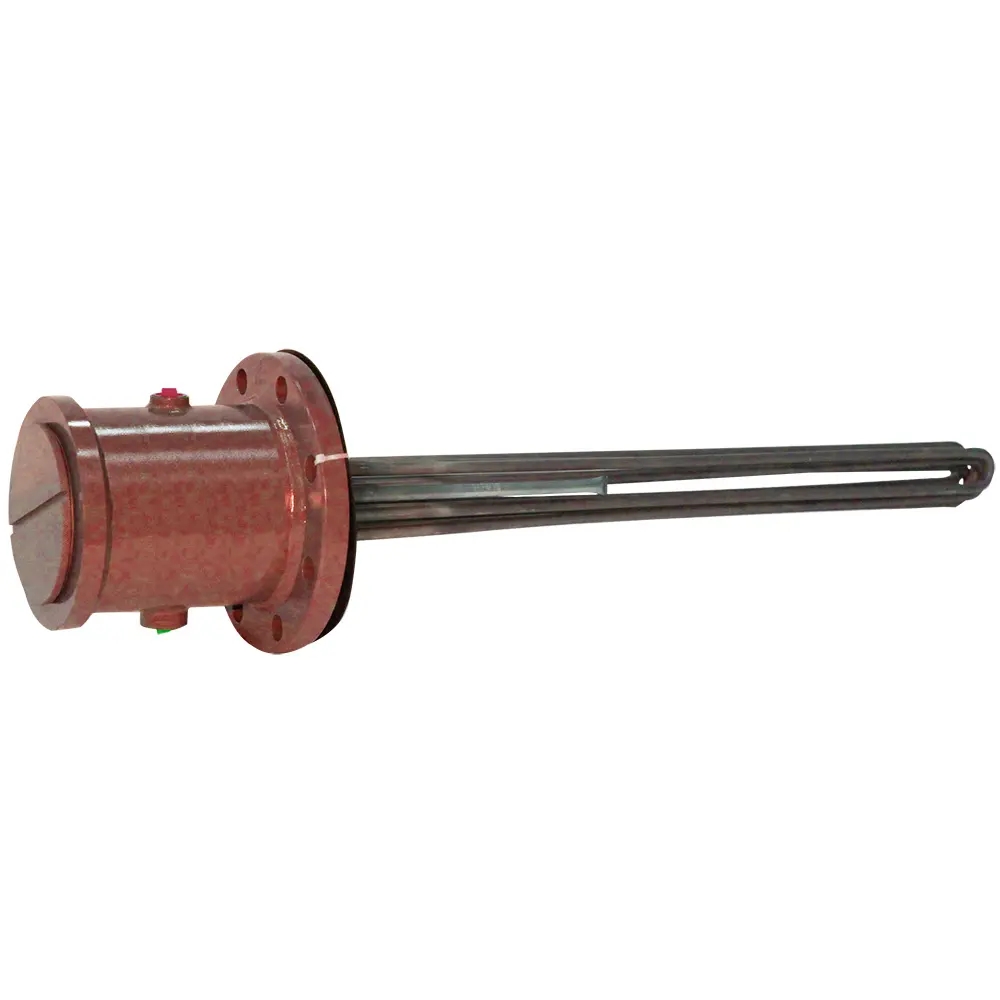

Flange Type Storage Tank Immersion Heater is a high-performance heating solution designed for efficient and reliable operation in industrial storage tanks. With a maximum power capacity of up to 2000KW-3000KW and a maximum voltage of 690VAC, it is ideal for large-scale heating applications.
Certified to ATEX and IECEx standards (Exd, Exe, IIC Gb, T1-T6), this heater is suitable for use in hazardous environments, including Zone 1 & 2 applications. Its IP66 ingress protection rating ensures resistance to dust and water, making it durable in challenging conditions.
Constructed from premium materials such as Inconel 600/625, Incoloy 800/825/840, Hastelloy, Titanium, and Stainless Steel (304, 321, 310S, 316L), the heating elements provide exceptional resistance to corrosion and high temperatures. The design complies with ASME code and other international standards, ensuring safety and reliability.
Advanced safety features include over-temperature protection on the heating element, flange, and terminal box, utilizing PT100, Thermocouples, or thermostats. The flanged connection allows for easy installation and maintenance, while its robust design supports both cyclic and continuous operation.
This heater is for applications requiring consistent and efficient heating in storage tanks, delivering long-term performance in demanding industrial environments.
